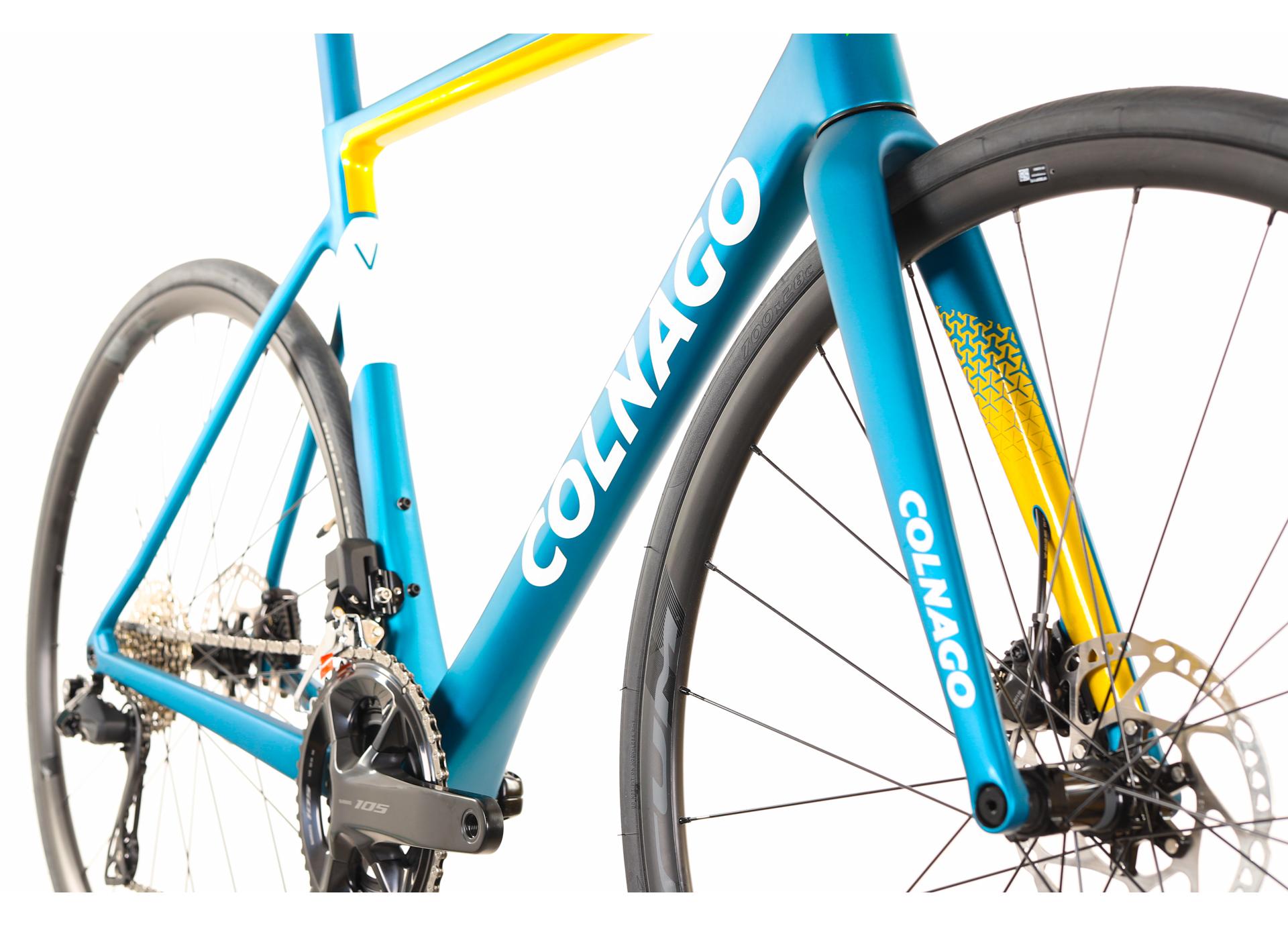

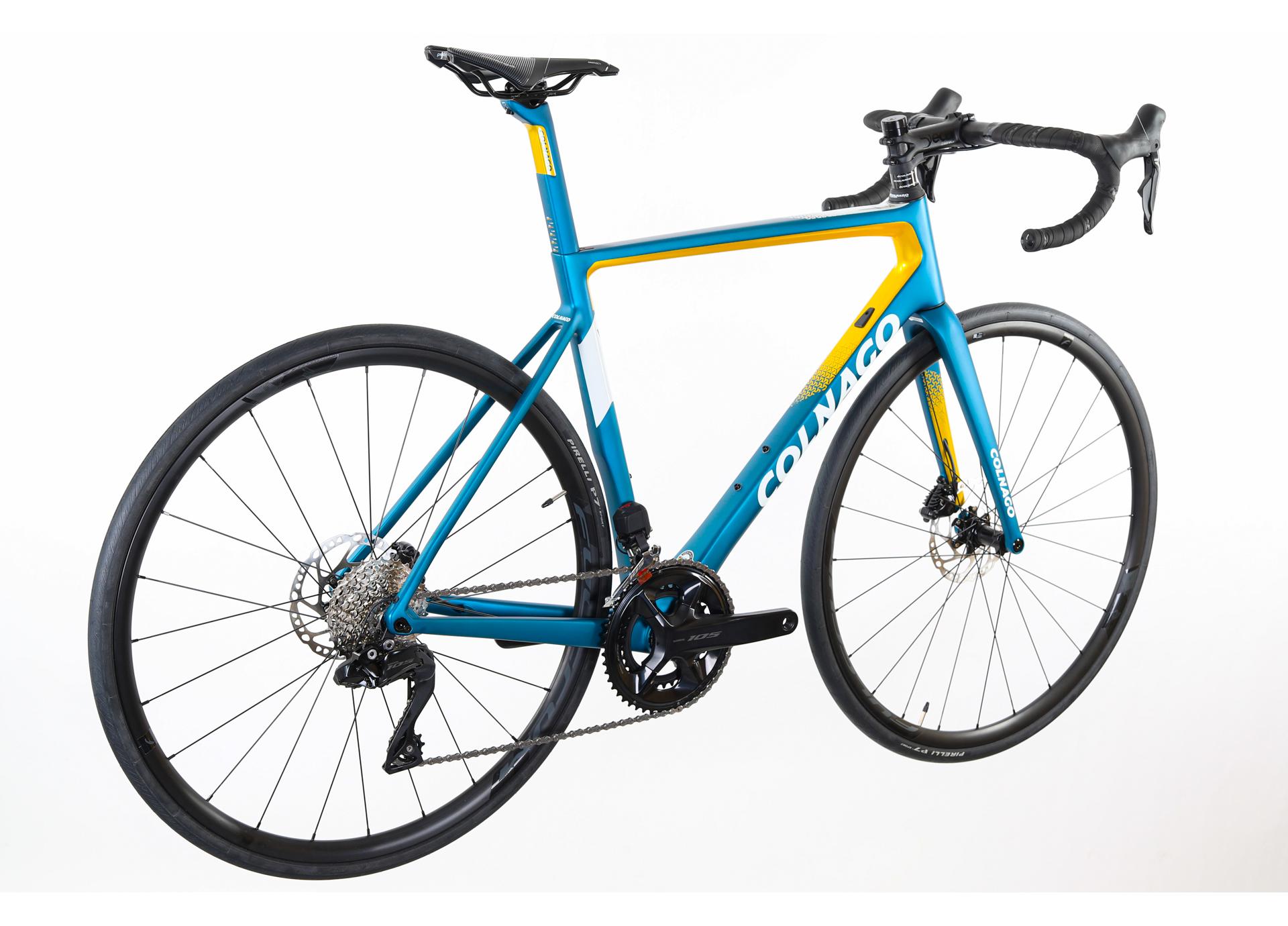

COLNAGO V3 DISC SHIMANO 105 Di2

New product

4 700 €

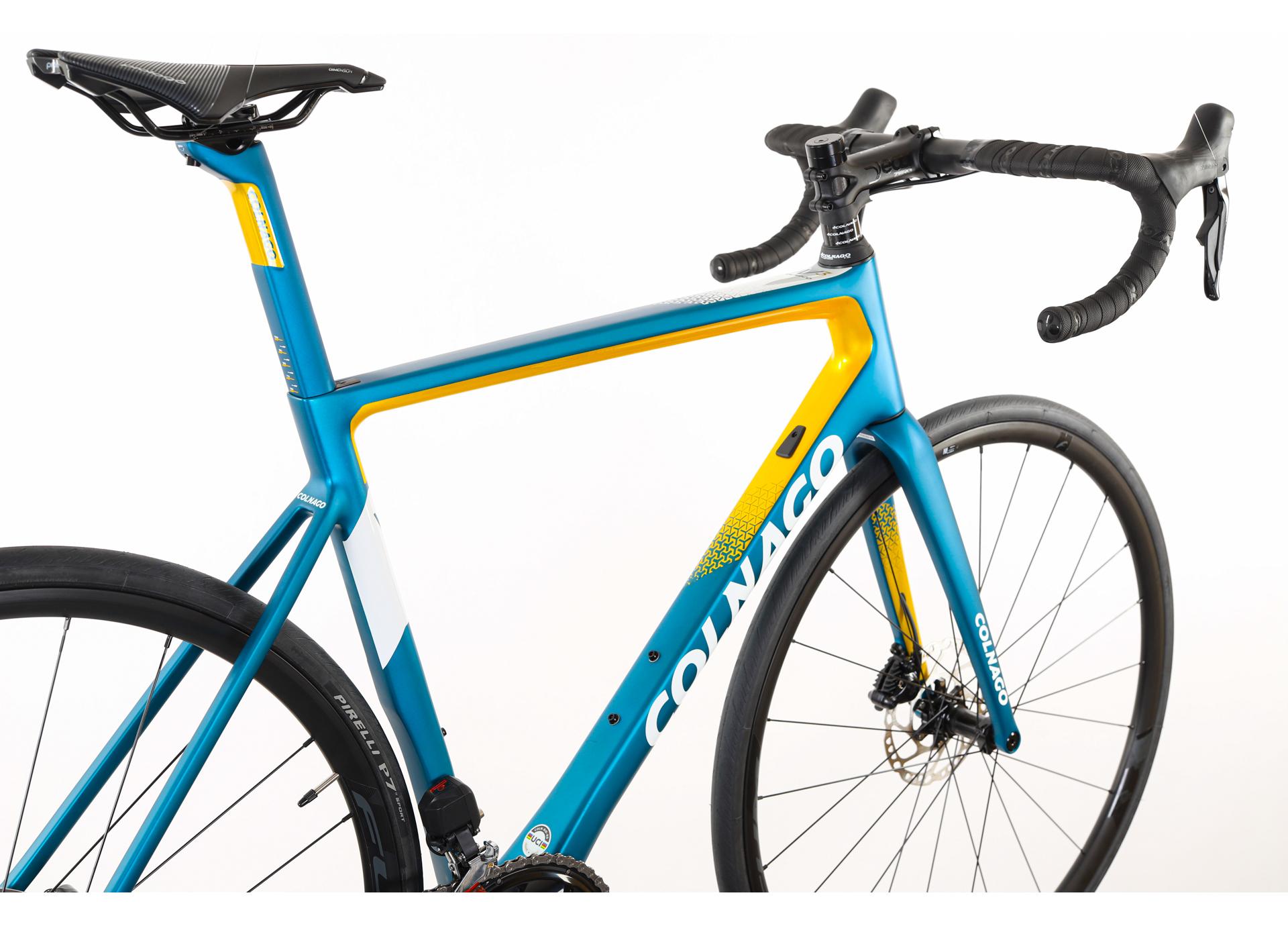

COLNAGO V3 DISC SHIMANO 105 Di2 MKBL colour



Colnago has a number of top-tier carbon fibre race bikes in its line-up. There’s the Italian-made lugged-construction C64, the latest in the iconic C-series. There’s the Concept, the company’s answer to an aero racer. And there’s the V series, an all-round racer that uses a monocoque construction method (like almost every other carbon race bike at the pro level, excluding the C64). It’s the last of these that Colnago has just updated in the midst of the Tour, and as the company’s highest stiffness-to-weight ratio bike, the new V3 comes just in time for the mountains.

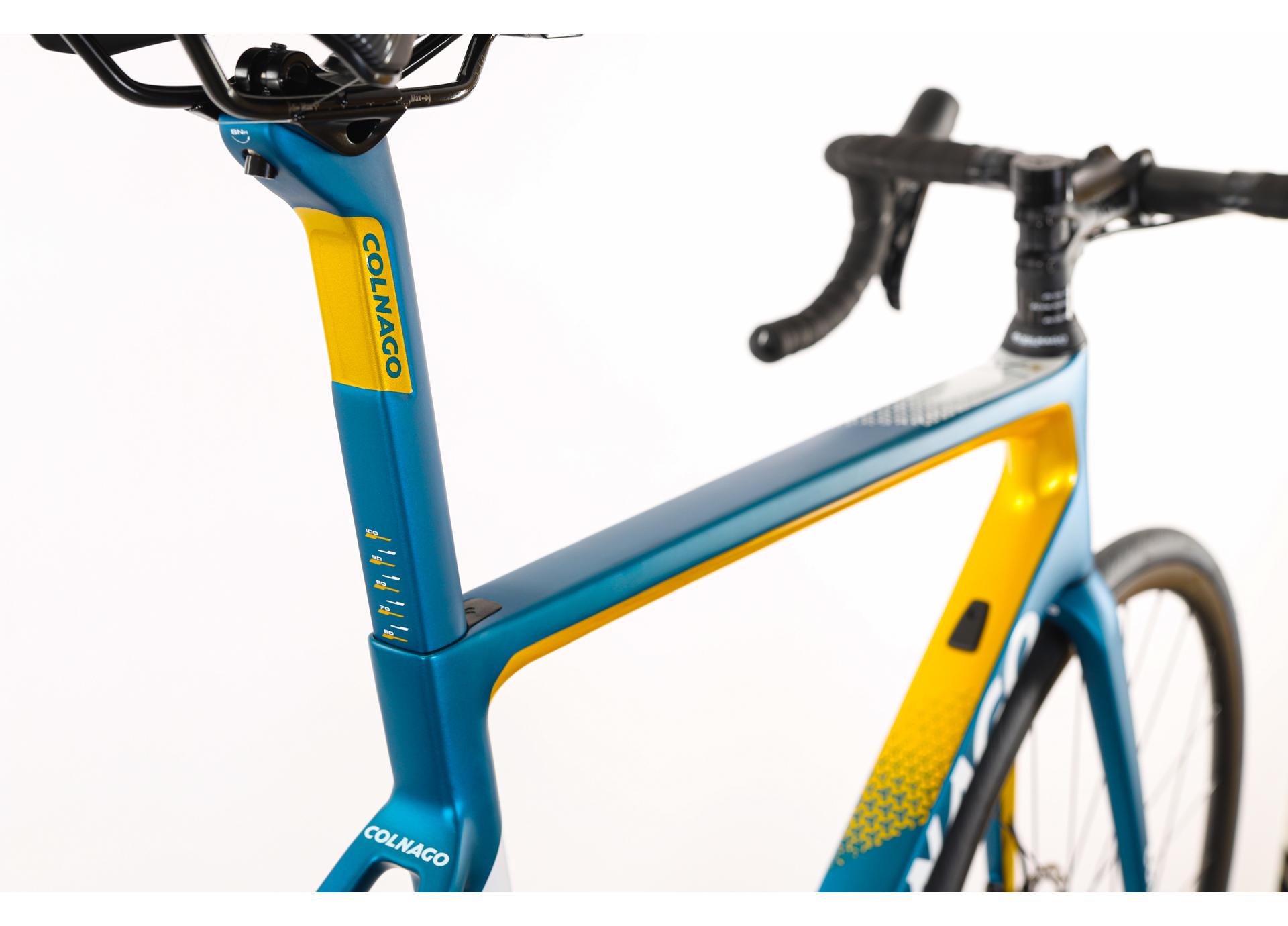

The new V3 offers stealthy cable integration, dropped seatstays, increased tyre clearance and an overhauled geometry to boot. And while the hefty cable integration is kept for the disc-brake version, there is a direct-mount rim brake version, too. Colnago V3

Somewhat simpler, the rim brake version offers direct-mount brakes and brake cable routing that’s not guided through the stem or headtube.

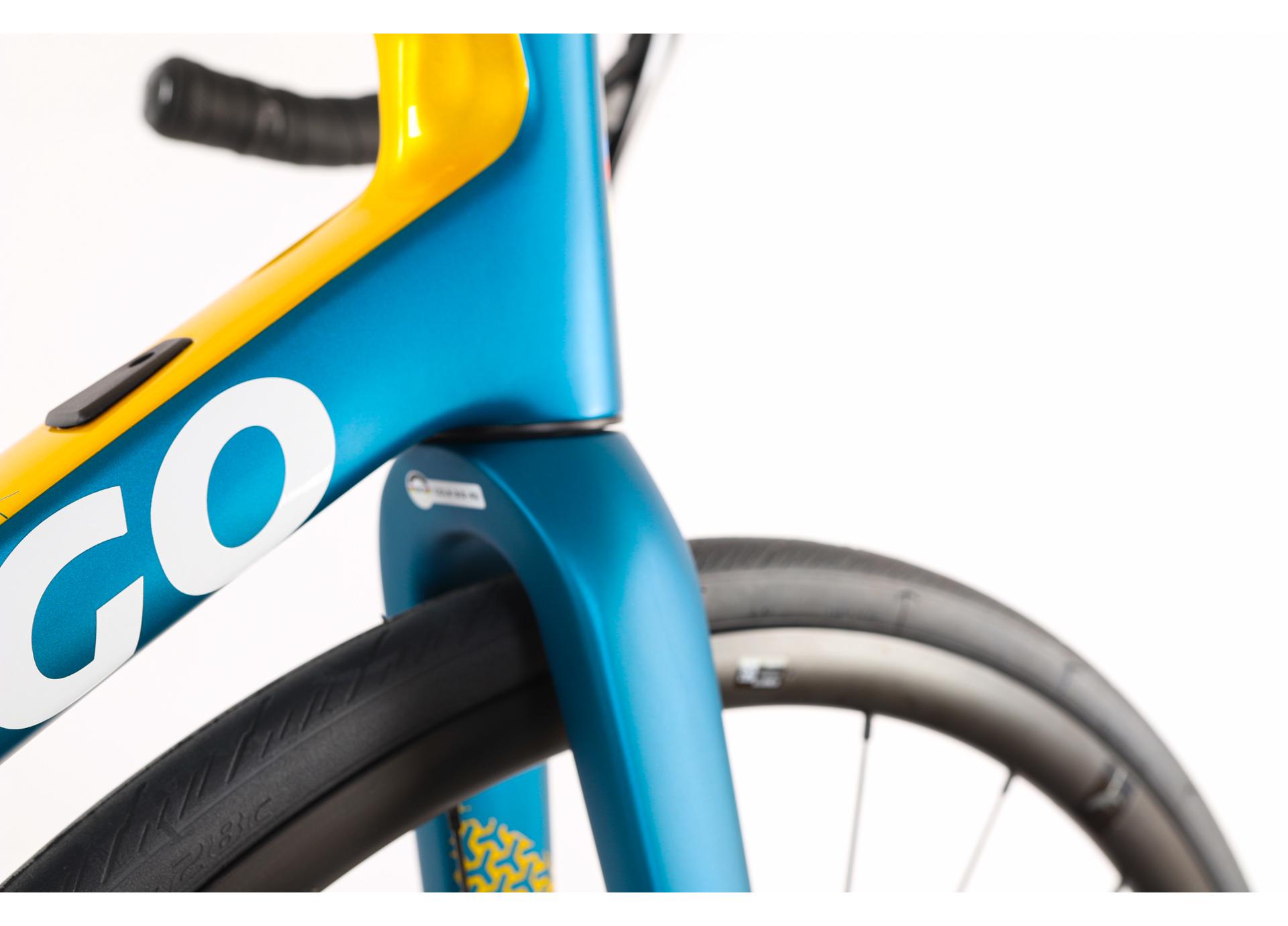

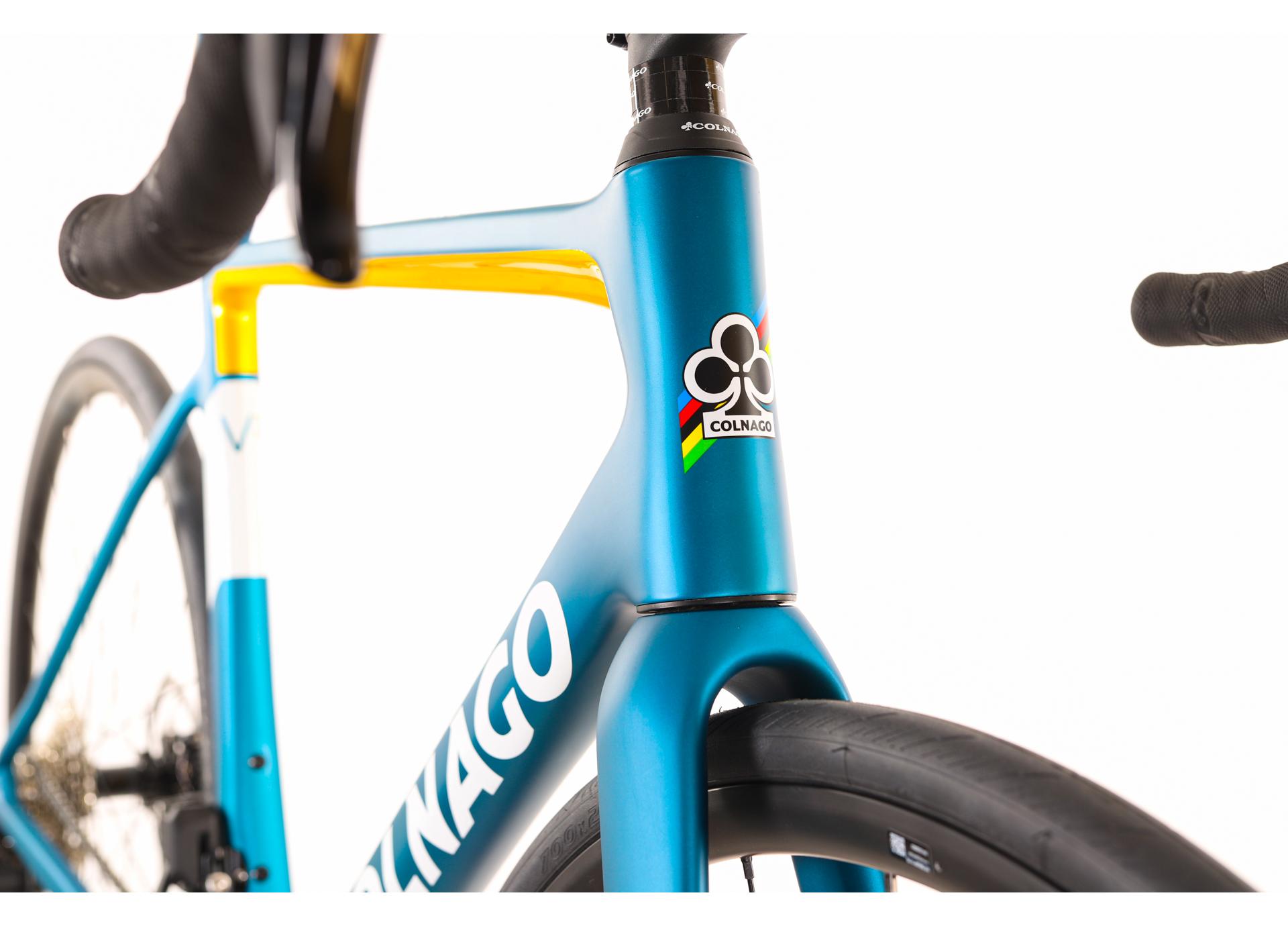

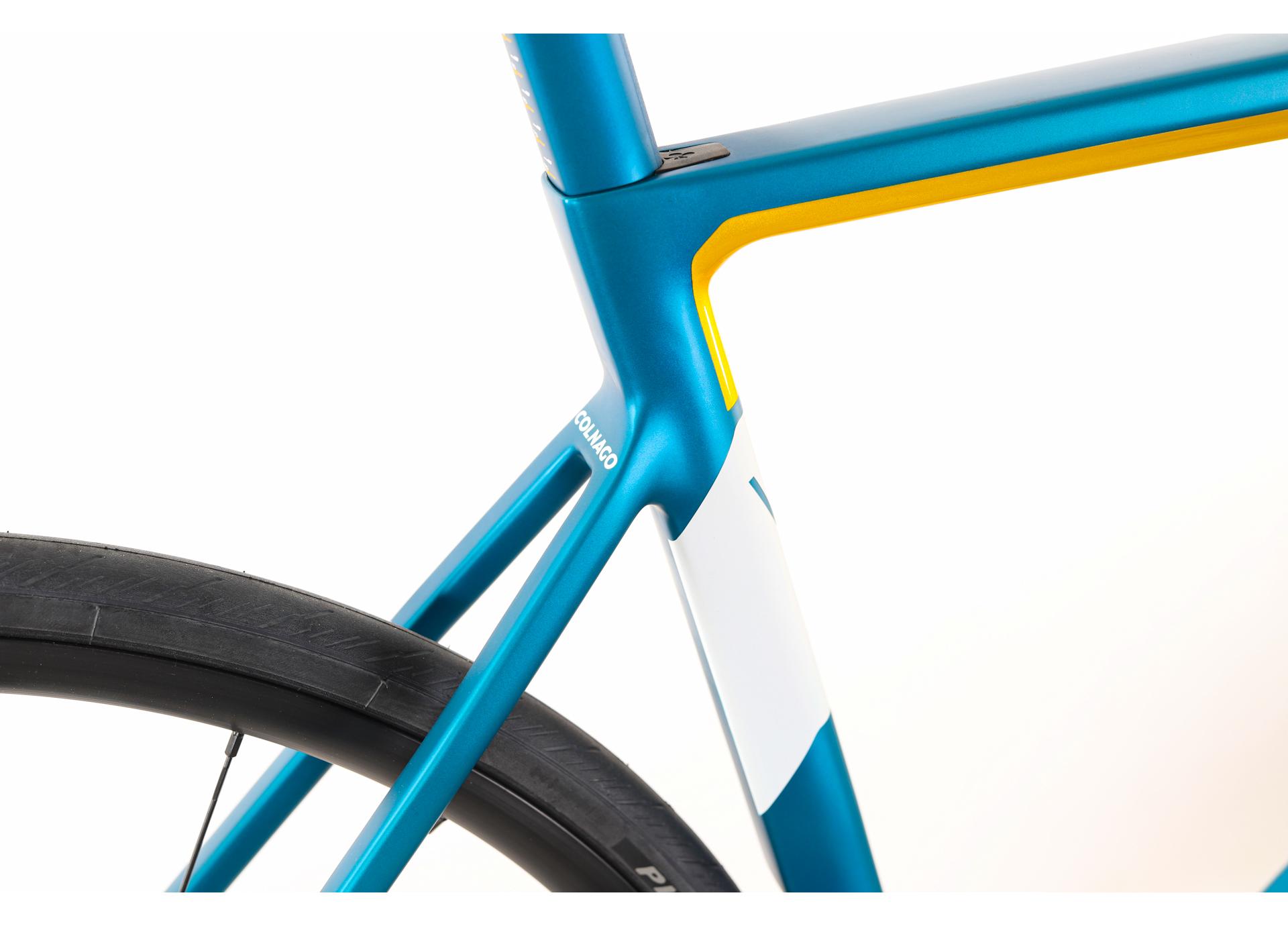

And while Colnago hasn’t said by how much, the new frame is apparently more compliant, too. Part of that may be the overhauled carbon layup, or dropped seatstays allowing more seat tube flex. Another reason may be the new headset that offers surrounding composite material designed to aid in compliance — a feature borrowed from Colnago’s Concept and C64 bikes.



The geometry has been overhauled, but it remains race-orientated.



The V3 is optimised for 28c tyres (it can apparently squeeze in 30c, although Colnago’s own literature says otherwise), and the geometry and fork have been revamped to retain a race bike fit and feel. For this, the bottom bracket has been lowered and the fork length increased, matched with a shorter head tube. With a sloping geometry, the stack and reach figures are now more linear across the eight frame sizes, too, a trend we’re seeing a lot for 2020.



While Colnago has made no specific claims about the aerodynamic performance of the V3R, it’s clear that with an integrated cockpit, dropped seatstays and seemingly truncated tube shapes, it’ll be faster than its predecessor. That fully integrated cabling is exclusive to the disc-version, and uses Colnago’s own stem and a special threaded fork steerer tube to route both the hydraulic hoses and electronic shift wires through the stem and directly into the head tube. Use either rim brakes or mechanical shifting and you’ll be forced to run your cables externally like a caveman … or like most riders in this year’s Tour.





Size
50s, 52s, 54s, 56s, 58s
Weight
7470g
Frame

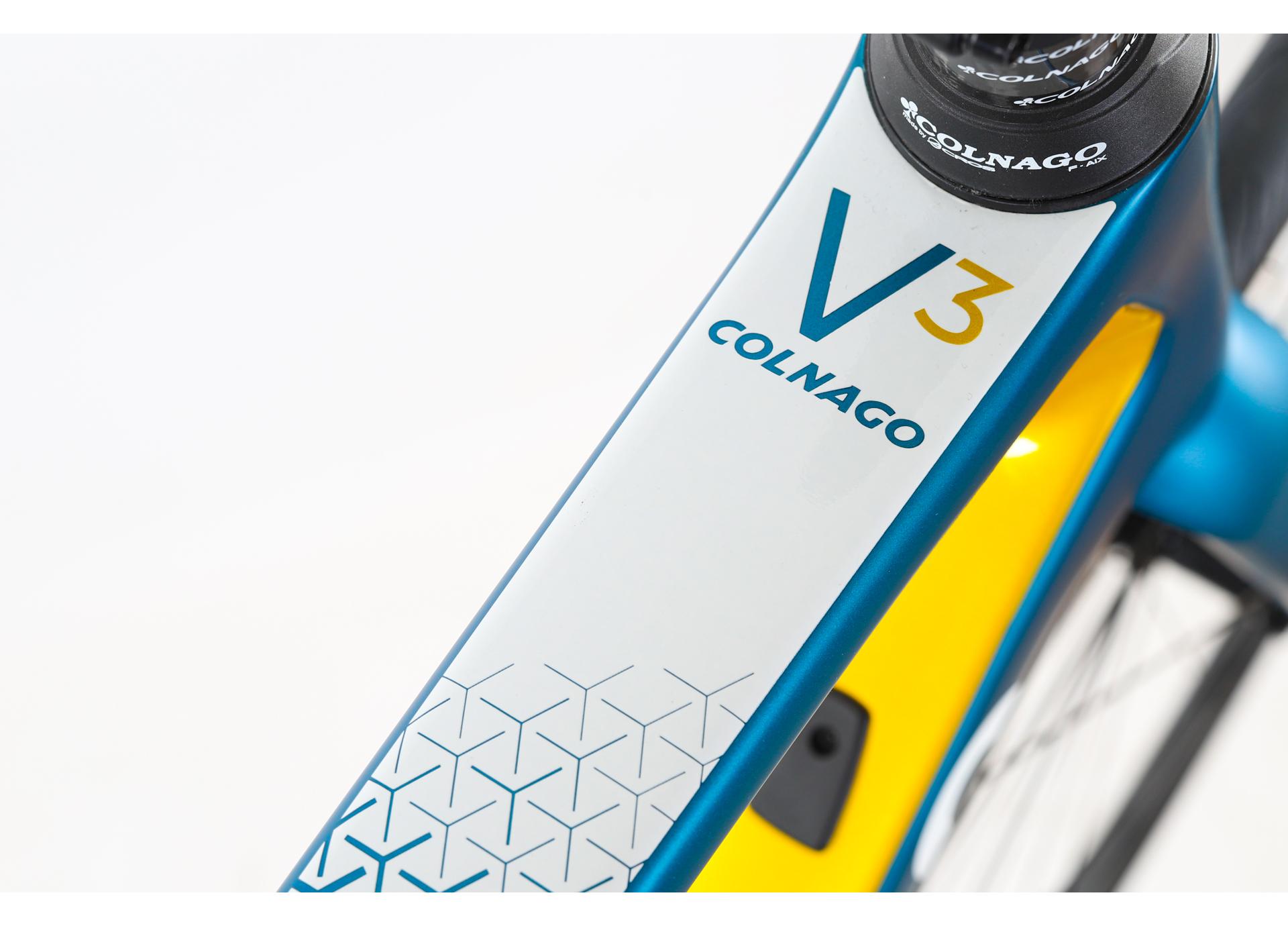

Colnago V3 Monocoque Carbon Disc
Fork

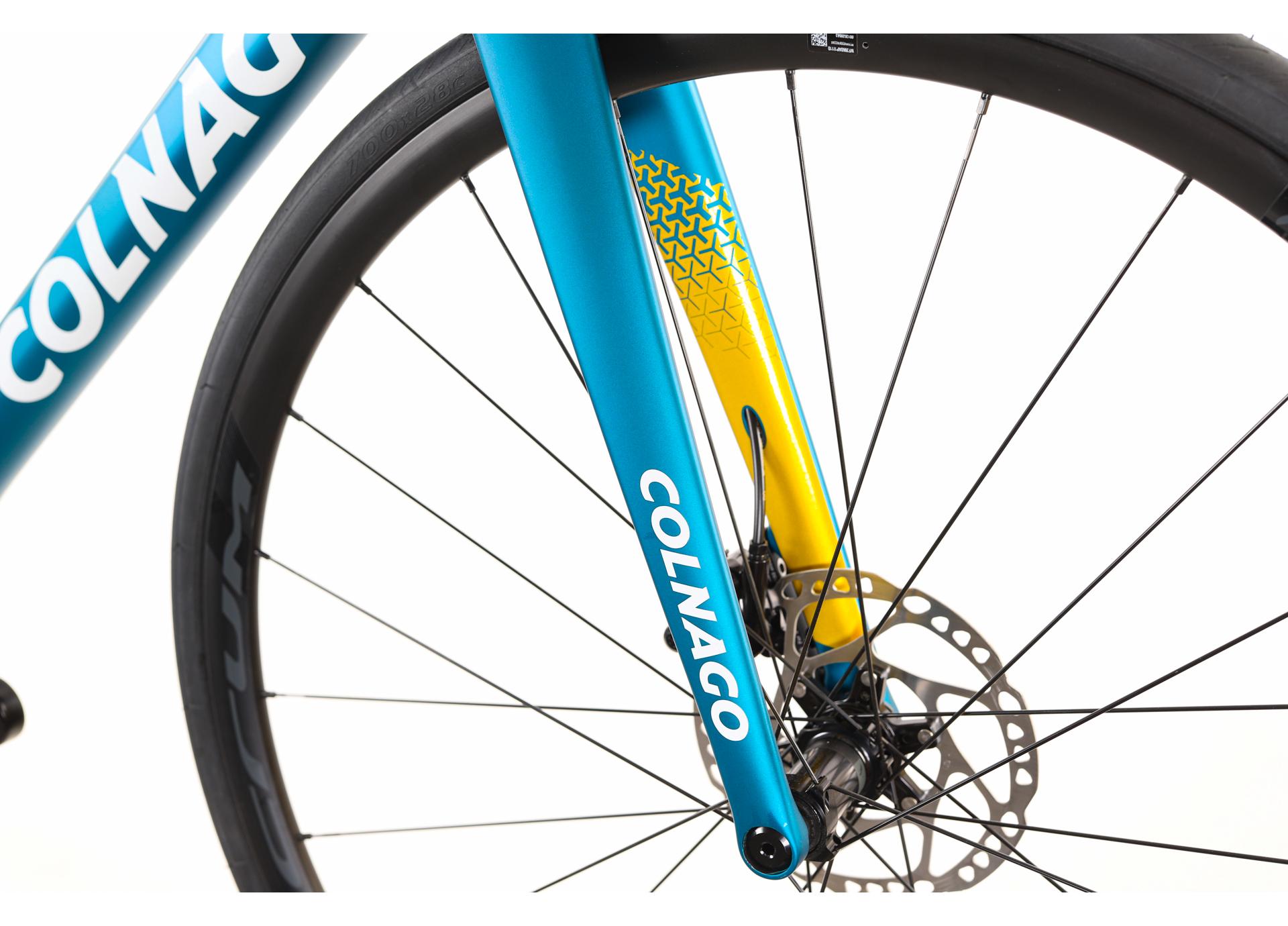

Colnago V3 Monocoque Carbon Disc
Wheel
FULCRUM RACING 600DB
Crankset

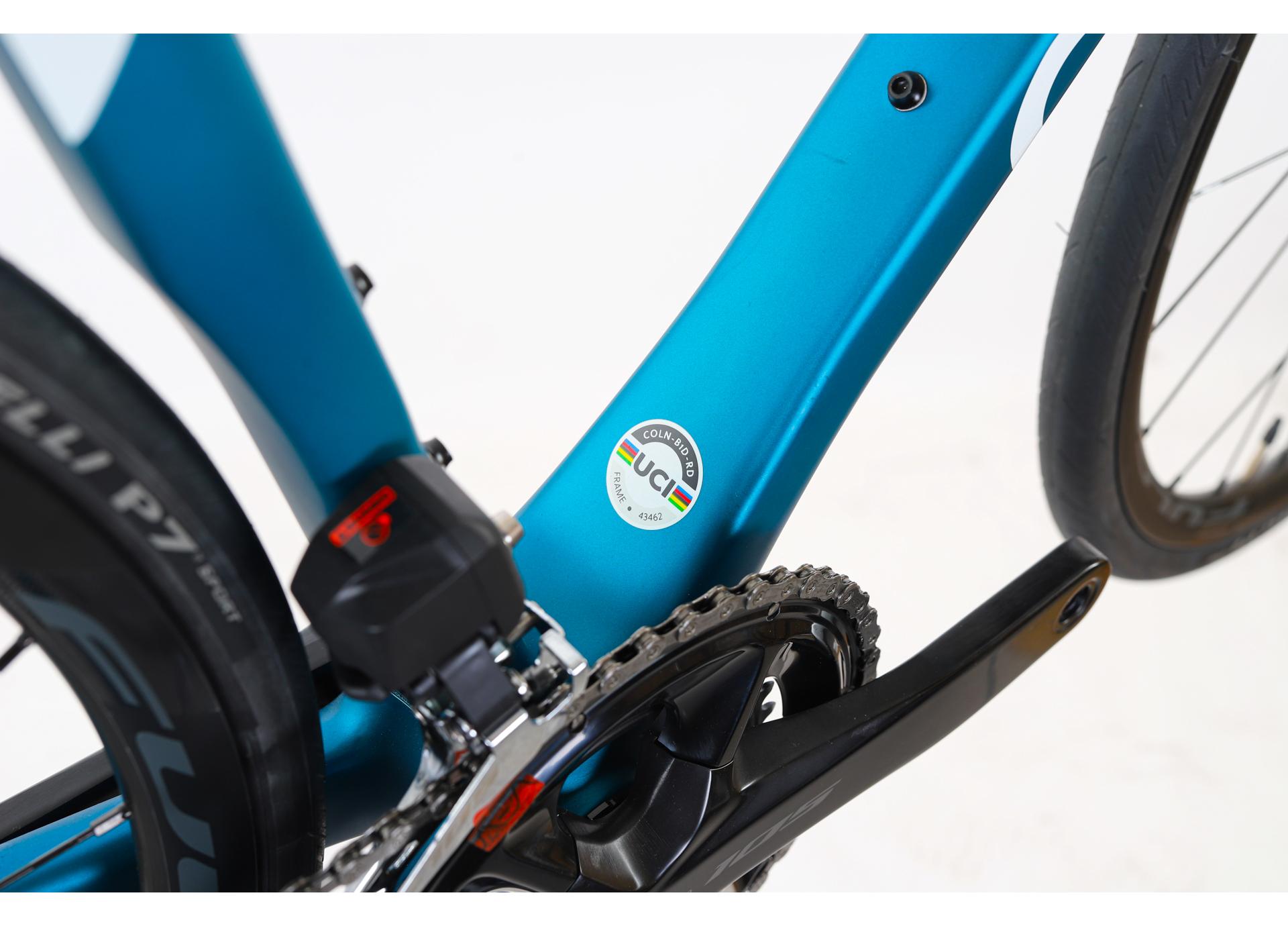

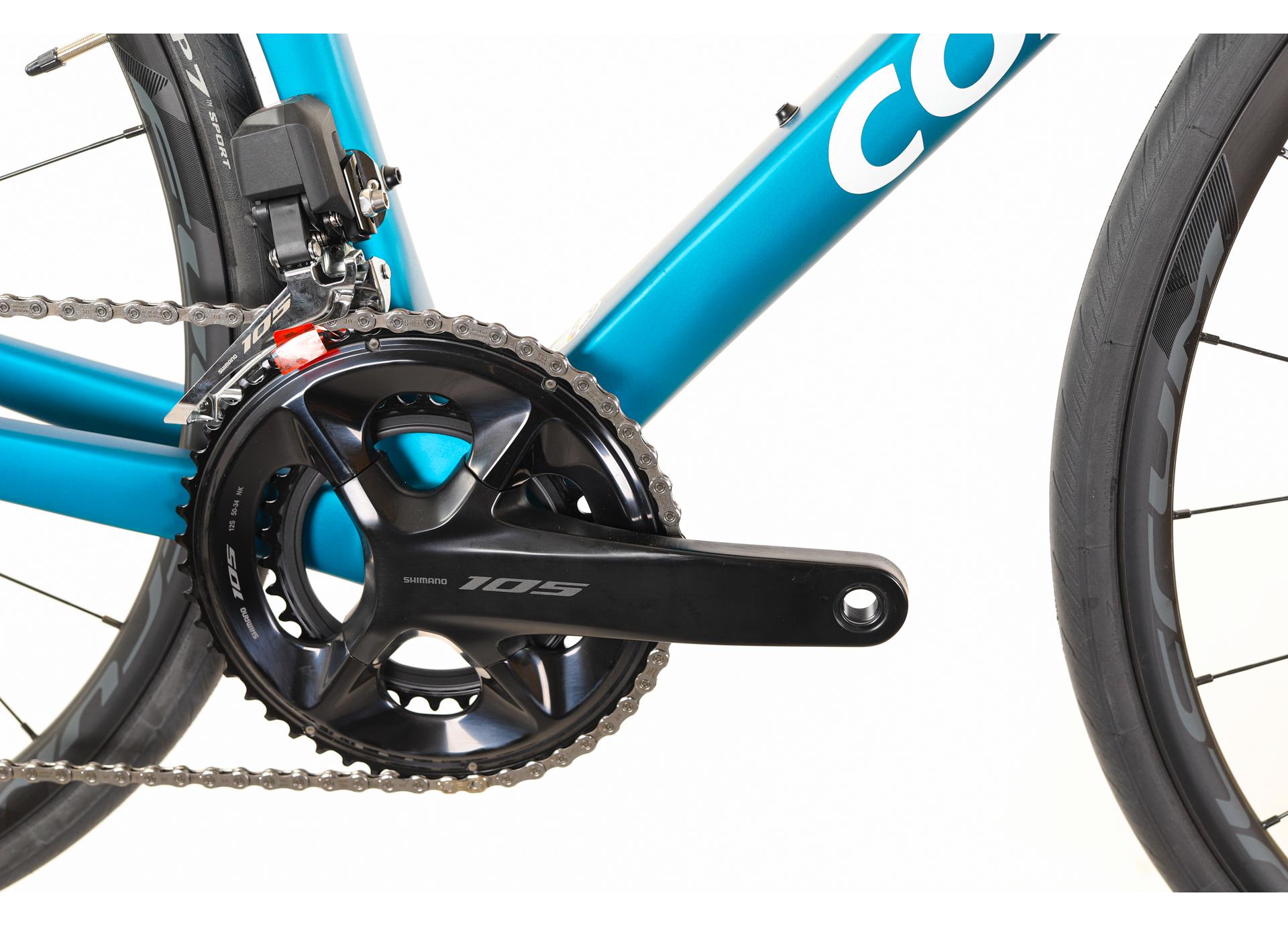

SHIMANO 105 FC-R7100
Rear derailleur
SHIMANO 105 Di2 RD-R7150
Front derailleur

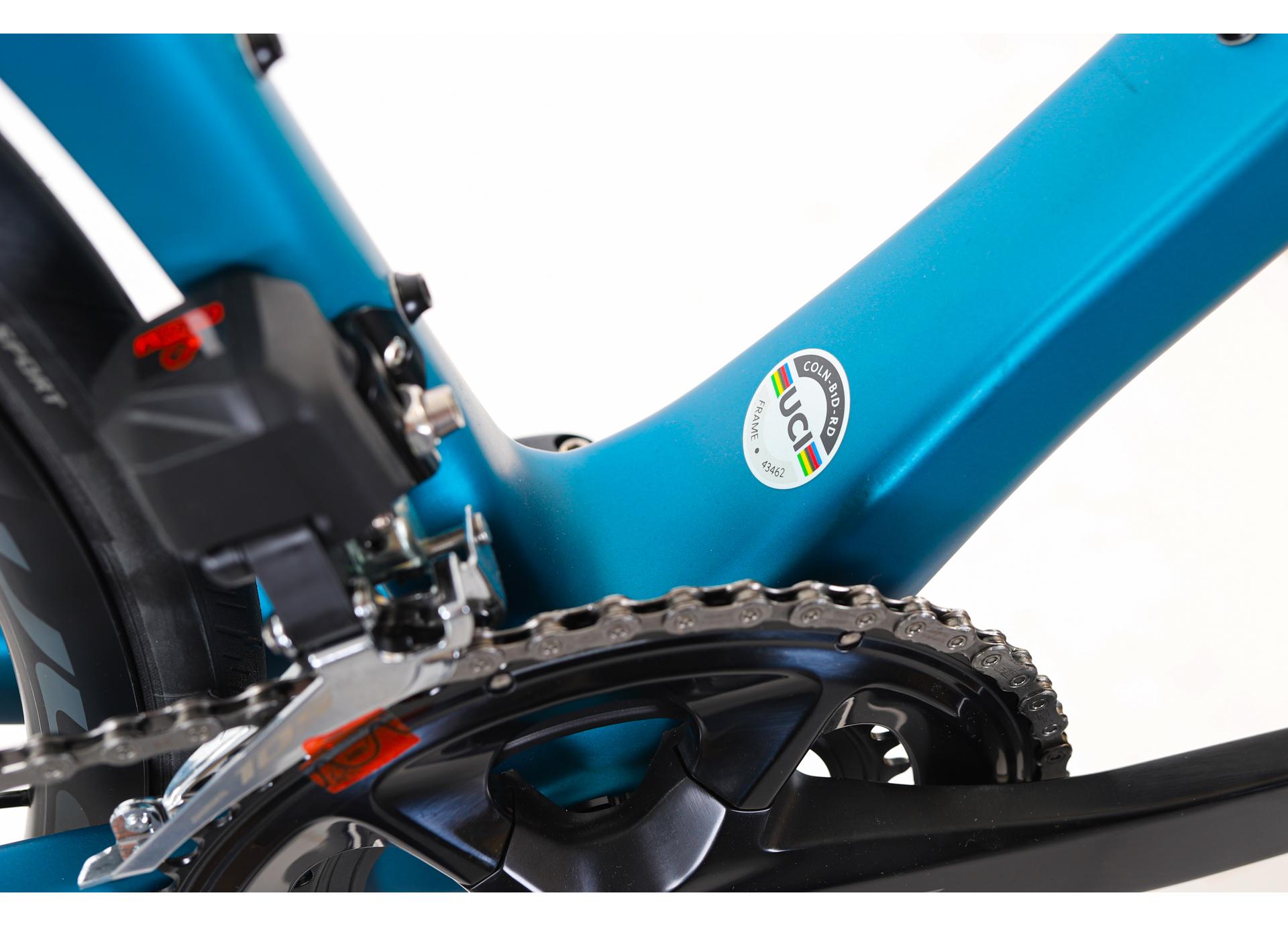

SHIMANO 105 Di2 FD-R7150
Cassete
SHIMANO 105 CS-R7100-12
Shifters
SHIMANO 105 Di2 ST-R7170
Brakes

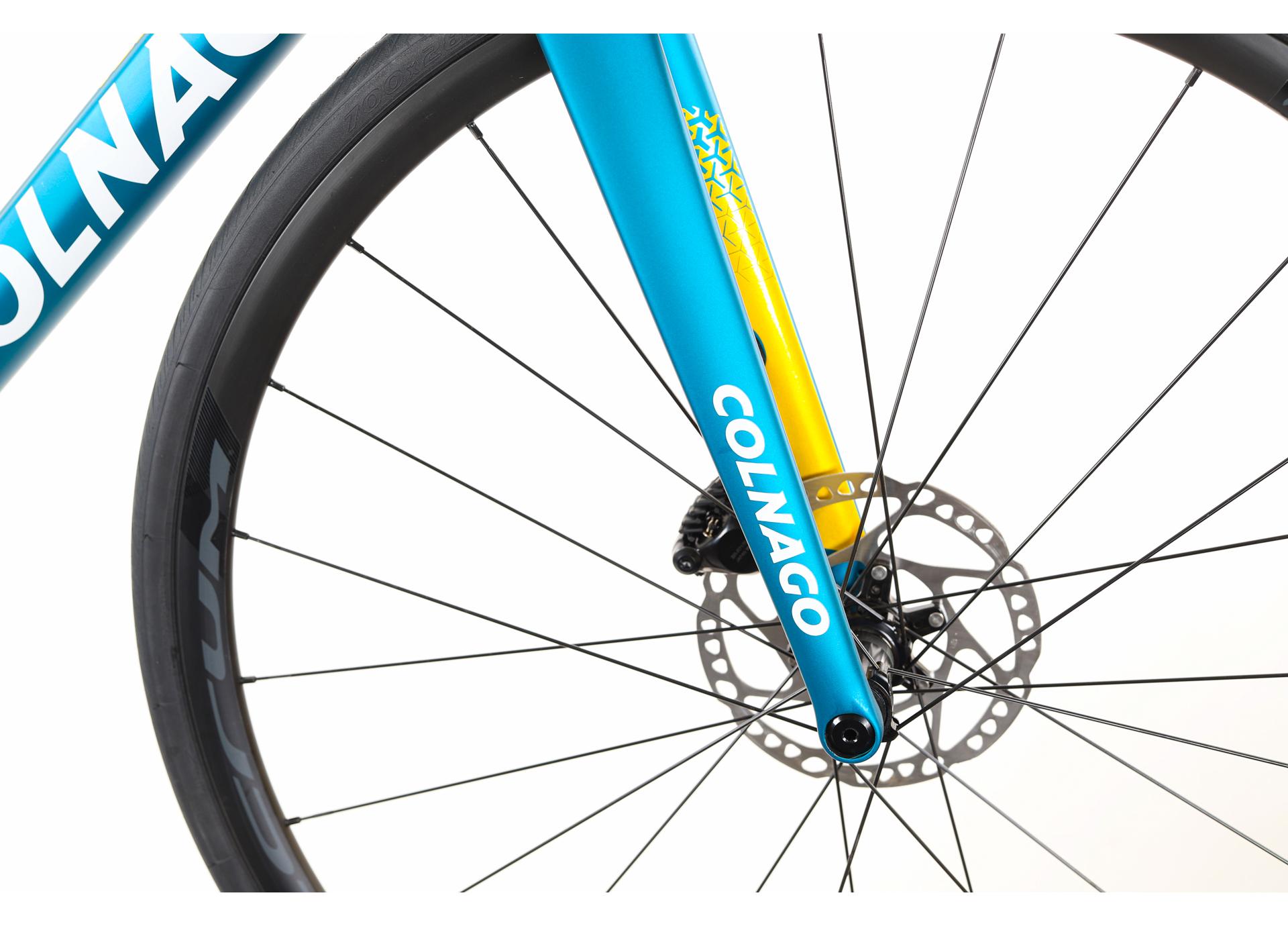

SHIMANO 105 BR-R7170
Handlebar
Deda Zero2 440mm
Stem
Colnago SR9 120mm
Seatpost
Colnago V3R Carbon
Saddle
Colnago Prologo Zero 2
Tires
Pirelli P Zero Velo 700x25c
Condition new
Material carbon
Components Shimano Di2
Rim depth 30mm - 50mm
