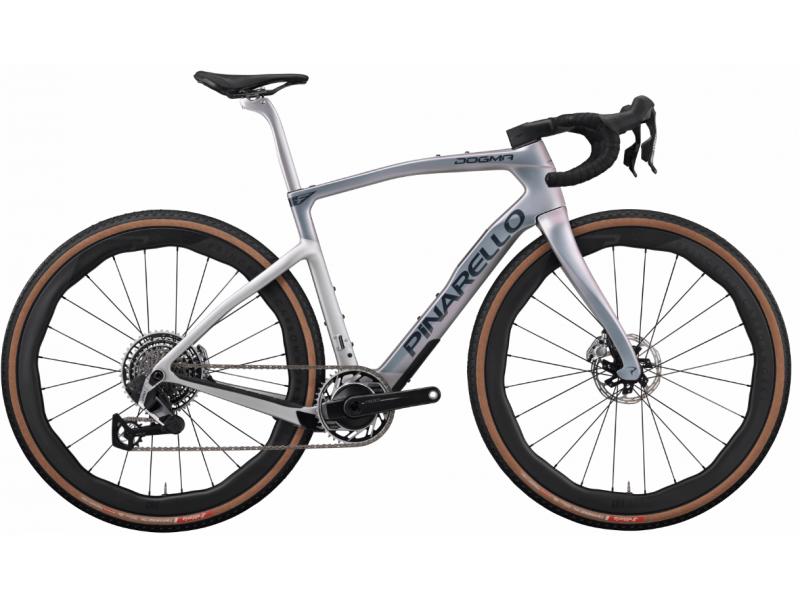

PINARELLO DOGMA GR

PINARELLO DOGMA GR

The DOGMA GR is the perfect blend of three of Pinarello's most popular bikes. It combines the speed and responsiveness of the DOGMA F, the agility and control of the CROSSIST, and the grip of the DOGMA XC. The DOGMA GR isn't just a gravel bike—it's a rocket on the pavement, blasting through gravel and dominating the most technical sections.

NEW M40X CARBON FRAME

The Dogma GR features the new M40X carbon fiber layup, which has proven to be lightweight, responsive, and durable in the new Dogma F model. This is the most advanced carbon frame available today.

RACE GEOMETRY

The frame geometry has been specifically designed to ensure riders maximize their potential. The seat tube and head tube angles facilitate an aerodynamic riding position while increasing the feeling of security and stability from the front, a fundamental feature when riding at speed on gravel.

STEERING HEAD CURVE

Our aerodynamic head tube nose shape, first introduced on the DOGMA F8 in 2014, continues to evolve. The latest version reduces the volume and width of this leading edge, offering a more streamlined shape that improves frontal aerodynamics.

ADAPTIVE SEAT POST

A new seat post was designed for this project. The seat tube, and more generally its shape, has been specifically shaped to provide increased comfort by finding the right balance between stiffness, aerodynamics, and vibration absorption. Maintaining the correct saddle position, even when riding on uneven terrain, allows for even distribution of force on the pedals.

AERO LOAD SYSTEM

This slim and lightweight bento bag, deliberately slim to avoid abrasion on the knees, is the perfect weapon for short races under 5 hours.

INTEGRATED TOOL BAG

Contents*: CO2 (1 piece), tire levers, TPU tube, mini pump, CO2 valve

NEW TALON ULTRA FAST GR

After extensive testing Based on the tests conducted on the Dogma GR, we decided to use the same handlebar geometry as the Talon Ultra Fast, with a 7° sweep and a 7° inward sweep. The Talon Ultra Fast GR features two rivets at the top, which serve as mounting points for the new TT Gravel Bars.

TT GRAVEL HANDLEBARS

Double center rivet on the Talon Ultra Fast GR. Adjustable reach and height on the extension and spacers. Computer mount integrated into the extension. Fixed rake angle of +10°.

MAXIMUM TIRE SIZE

Tires must be matched to the conditions of the racetrack. For this reason, the frame offers maximum tire clearance of 45mm and 42mm, measured front and rear respectively.

E-TICR - NOW LIGHTER AND WITH IMPROVED LINK ROUTING.

Reducing the head tube width required a complete redesign of the steerer tube. We developed an innovative, elliptical shape that incorporates a completely new headset with differentiated bearings: wider at the bottom and narrower at the top.

FRONT THRU AXLE

Hidden front thru-axle thread. This solution improves aerodynamics while emphasizing the elegance of the fork design.

Size

53 cm

Frame

TorayCa M40X, TiCR™ cable routing, Italian bottom bracket

Fork

NEW eTICR Onda fork with ForkFlap™ system, 1.5-inch Upper and Lower Headset

Wheels

PRINCETON GRIT 4540 DB

Crankset

SRAM RED XPLR AXS 1x13

Rear Derailleur

SRAM RED XPLR AXS 1x13

Front Derailleur

SRAM RED XPLR AXS 1x13

Cassette

SRAM RED XPLR AXS 1x13

Shifters

SRAM RED XPLR AXS 1x13

Brakes

Sram Red 2-piston caliper, 160mm rotor

Handlebar

MOST TALON ULTRA FAST GR

Stem

MOST TALON ULTRA FAST GR

Seatpost

Pinarello Aero Seatpost with Titanium Seat Clamp and 3D Printed Bolts

Saddle

Lynx 2.0 Ultrafast Superflow L Carbon Large 145 mm Bridge

Tires

VITTORIA TERRENO T30 40
